Setting up AOL 4.0 to work with SpoonProxy
First, in SpoonProxy, use the Port Mapping Wizard or the TCP Map to map port 5190 IN and OUT to the IP address for americaonline.aol.com
Then, start up AOL.

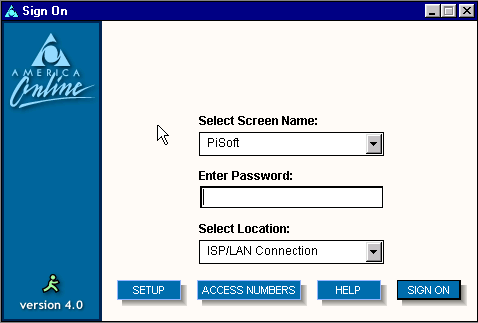

When you startup AOL, you will see the following screen.

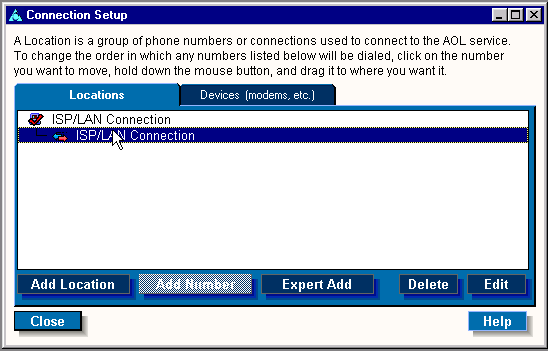

Setup which brings up the following screen:
Select Expert Setup.
Highlight ISP/LAN Connection (as illustrated above).
Click the radio button marked "Manual Proxy Configuration" as show above. Then click on View.
In the above illustration, replace 192.168.0.1 with the internal IP address of the machine you run SpoonProxy on. Port 5190 is the default AOL port and is the port you should have mapped already in SpoonProxy to the IP address for americaonline.aol.com.
